Content
Introduction to Computer Fundamentals
Basics of Programming Idea of Algorithm
Operators
Control Structures
Functions
Arrays
Structures and Unions

Introduction to Computer Fundamentals

1. Input and Output Devices

Input Devices:

Input devices allow users to enter data into a computer system for processing.

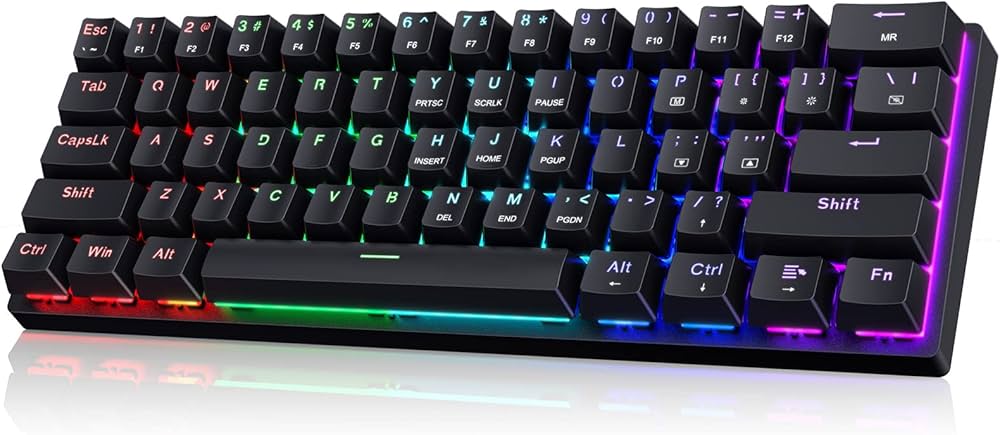

  1. Keyboard:

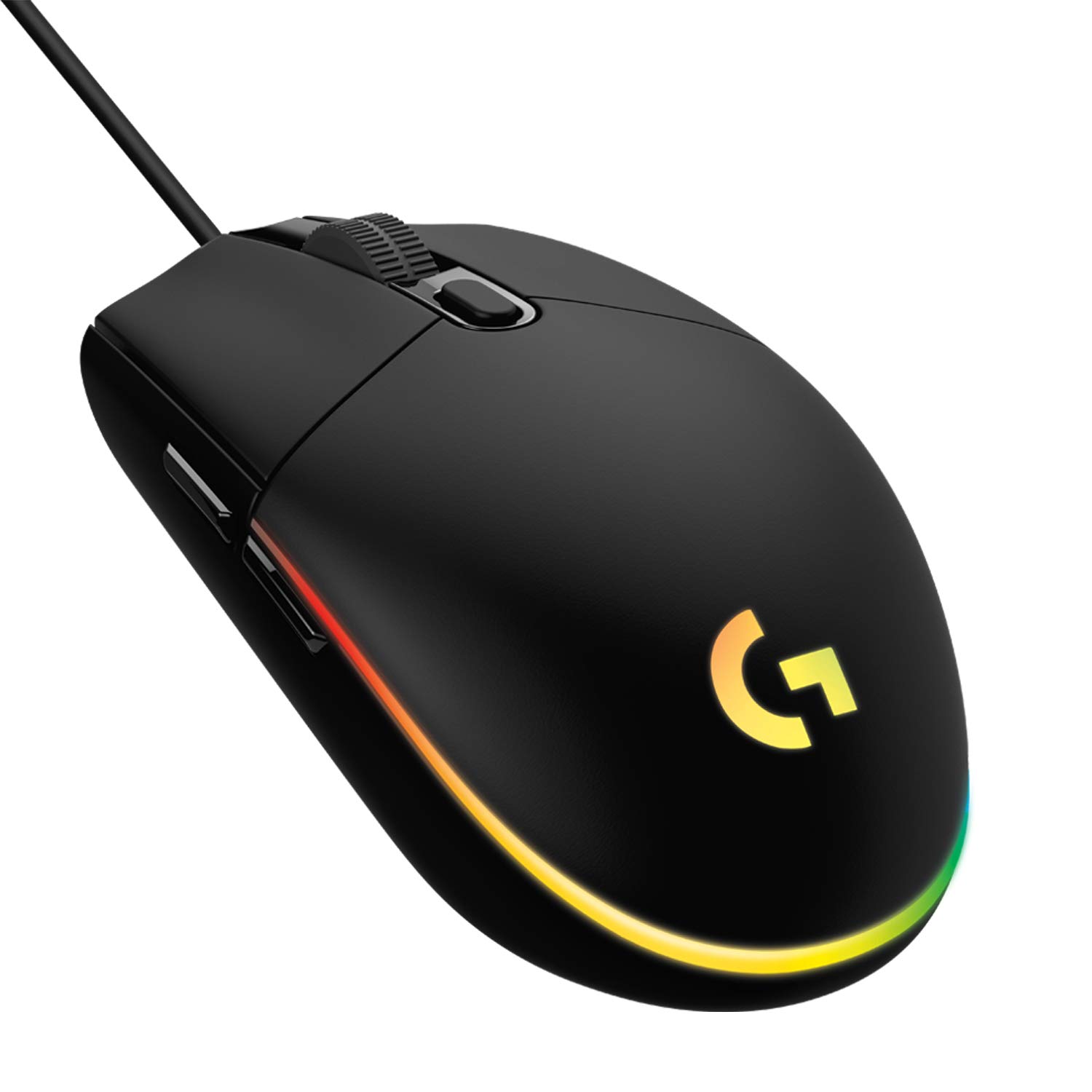

  1. Mouse:

  1. Scanner:

  1. Microphone:

  1. Webcam:

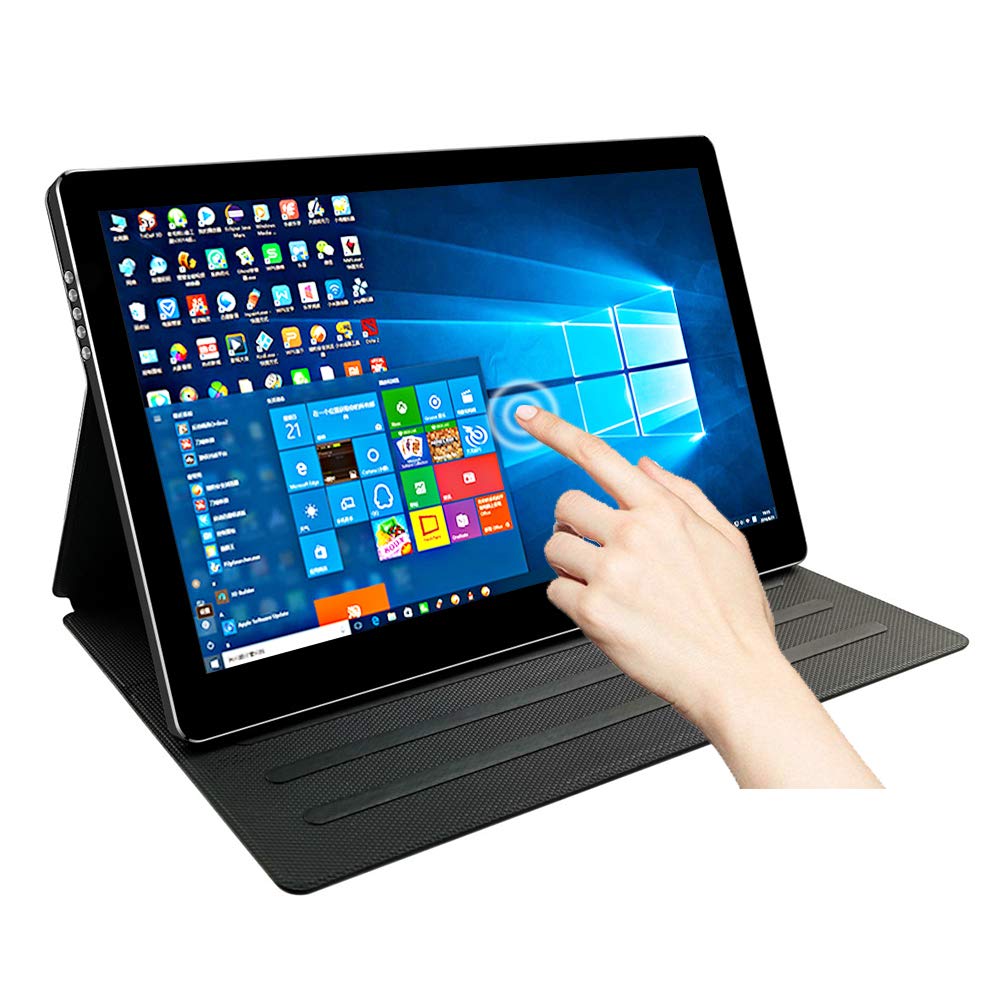

  1. Touchscreen:

Output Devices:

Output devices allow computers to communicate results to the user in various formats (visual, audio, printed).

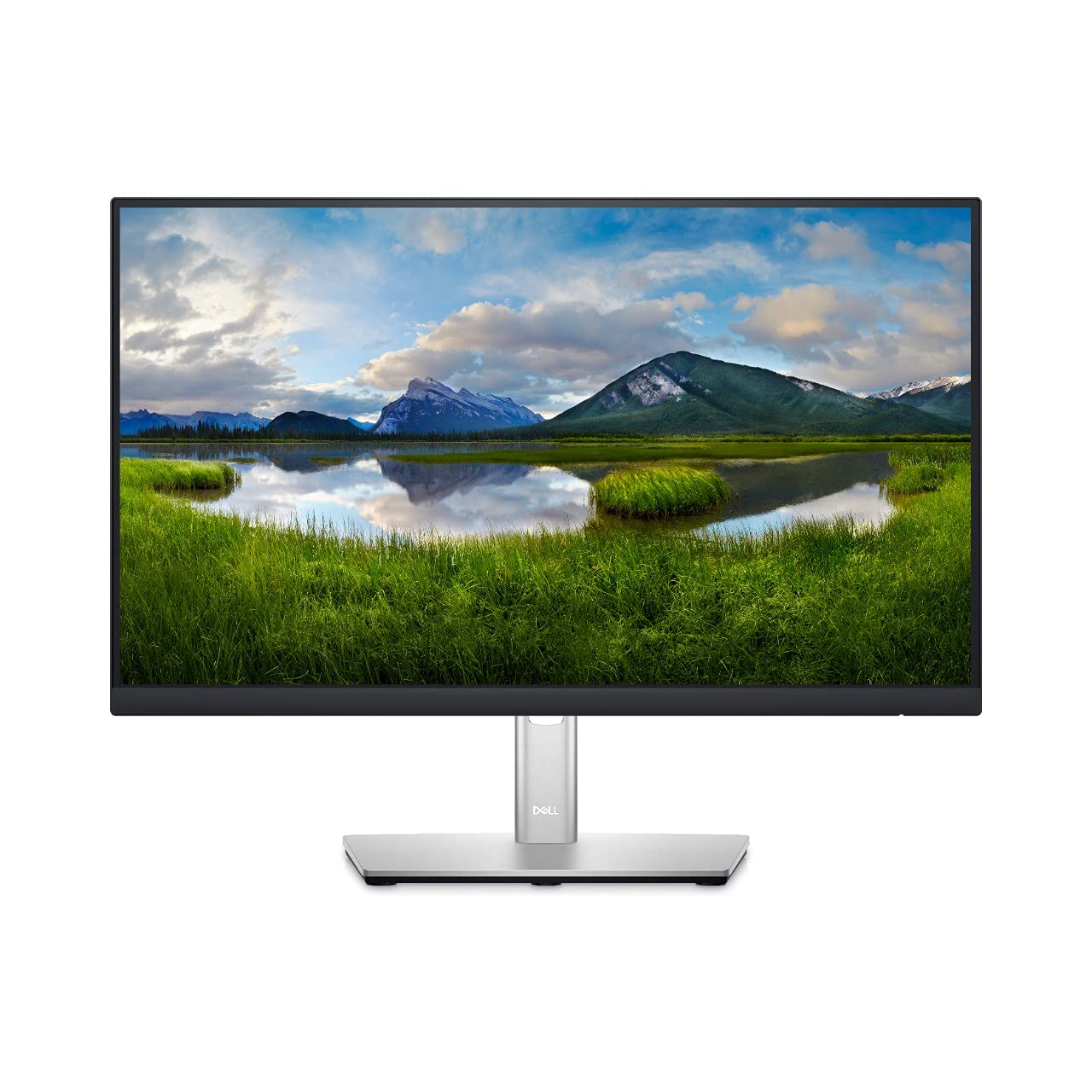

  1. Monitor:

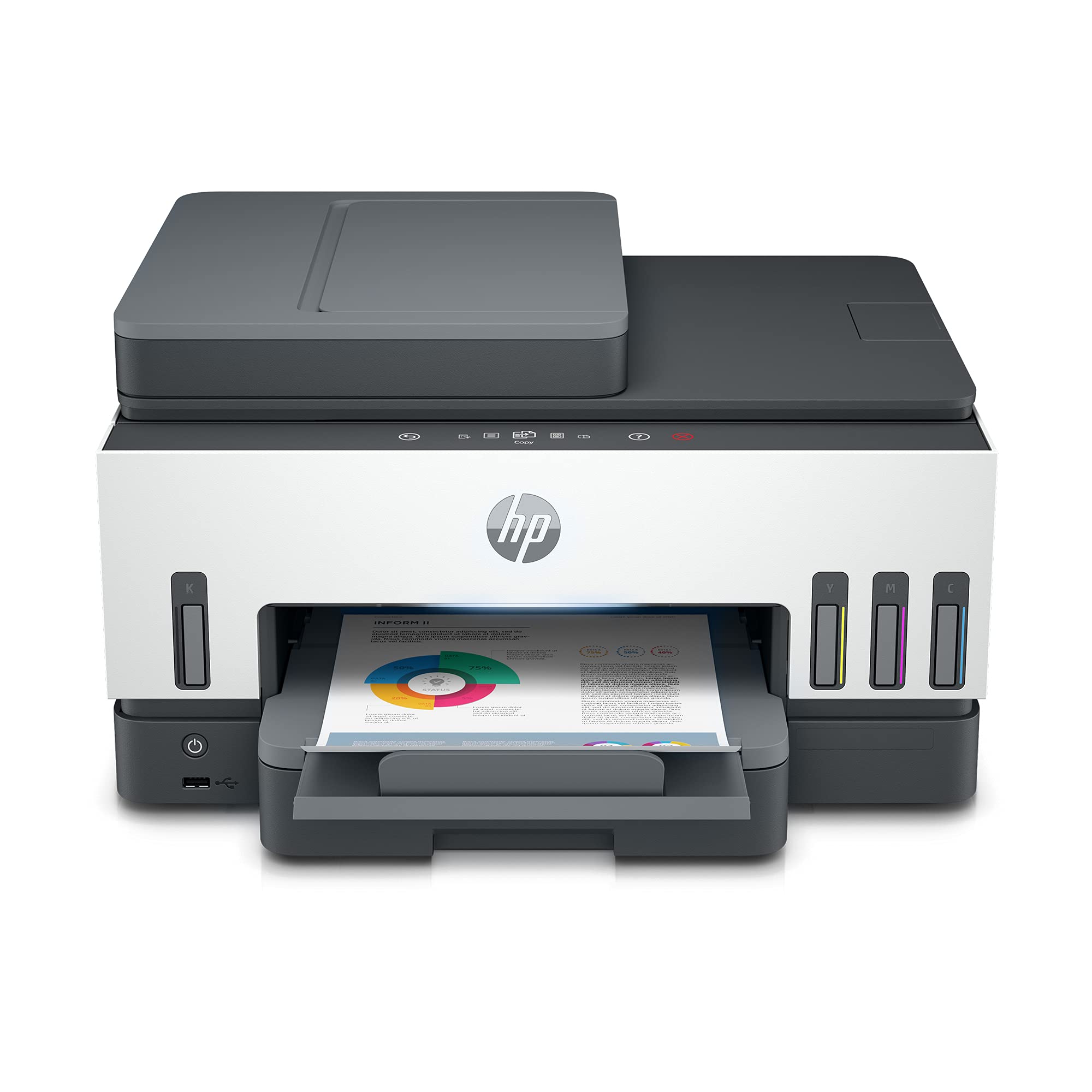

  1. Printer:

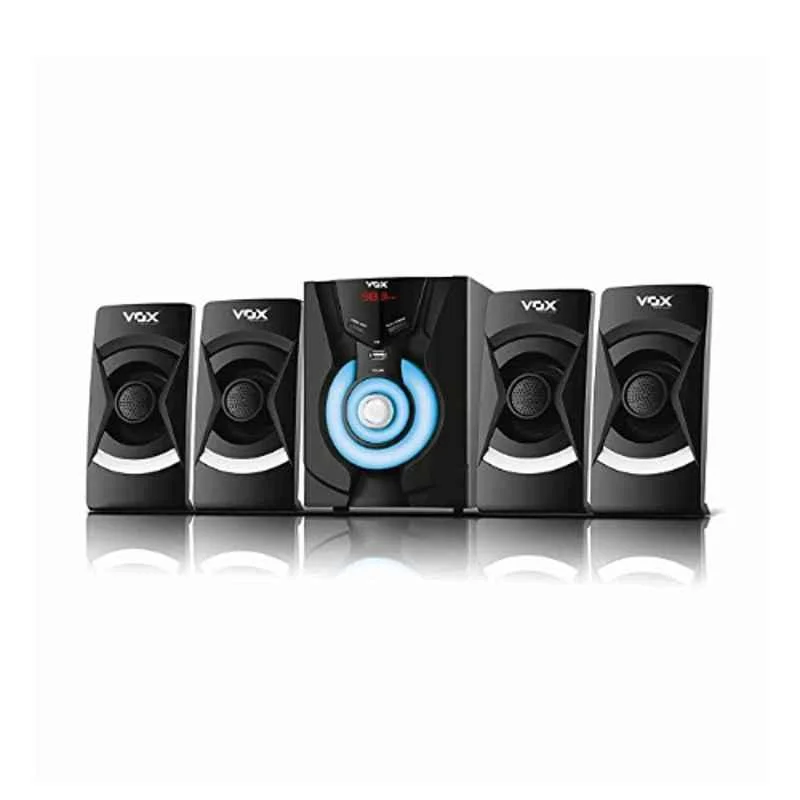

  1. Speakers:

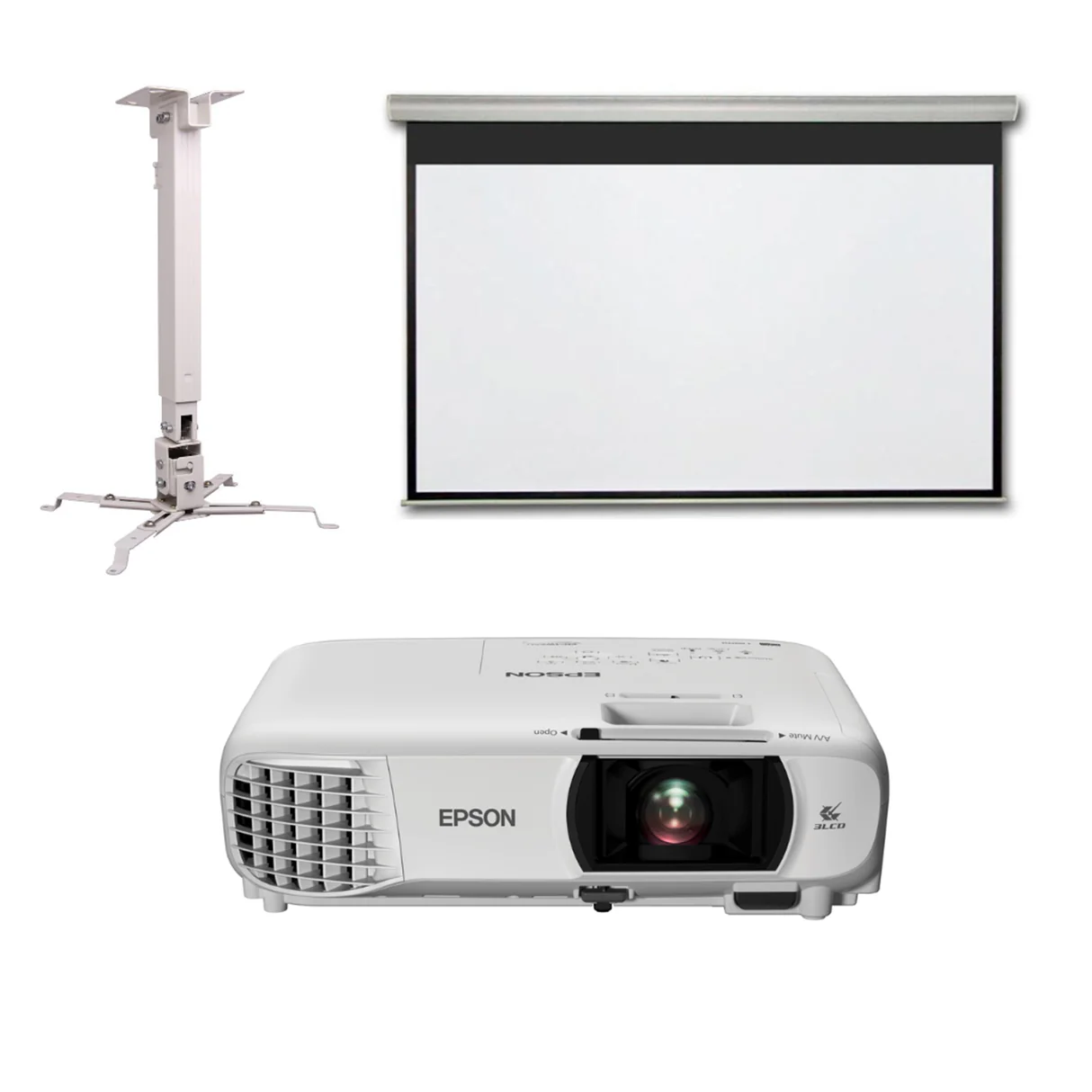

  1. Projector:

2. Memory and Storage Devices

Memory (Temporary Storage):

Memory is used by the CPU to store data and instructions that are in use by running programs. It is volatile, meaning it loses data when power is turned off.

Storage Devices (Permanent Storage):

Storage devices keep data even when the computer is turned off. These devices provide non-volatile storage for the operating system, applications, and user data.

Disadvantages**: Dependent on internet access, security and privacy concerns.

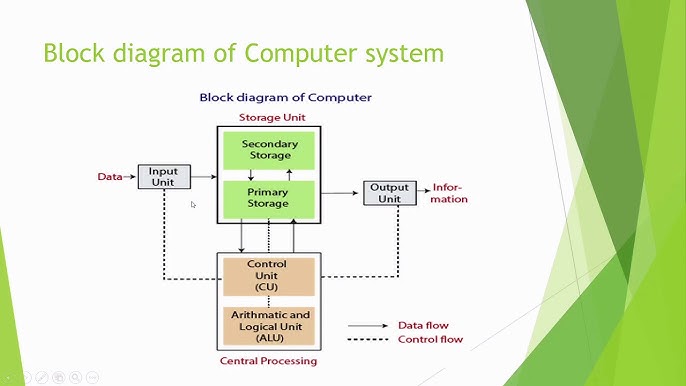

3. Block Diagram of Computer System

To visualize the architecture of a computer, the block diagram typically consists of the following components:

4. Types of Software

System Software:

System software includes the operating system and various utility programs that manage the hardware and provide a platform for running application software.

Application Software:

Application software is designed to help users complete specific tasks, such as word processing, web browsing, or gaming.

5. Operating System with Its Types

Operating systems manage the computer’s resources and provide an environment in which applications can run.

6. Compiler, Interpreter, Assembler, Linker, Loader

Compiler:

Interpreter:

Assembler:

Linker:

Loader:

Basics of Programming Idea of Algorithm

Step 1: Understanding the Problem

This is the foundation of problem-solving. Carefully read the problem and try to restate it in your own words to clarify what’s being asked. Identify any hidden requirements, edge cases, or special scenarios. For example, if a problem involves calculating the sum of numbers, determine if there are specific conditions such as only summing positive numbers or skipping certain values. This initial analysis ensures that you comprehend every detail of the problem before moving forward.

Example: If a problem asks to find the largest number in a list, ensure you understand whether the list can contain negative numbers, or if it may be empty.

Step 2: Identify Inputs and Outputs

Identify the inputs (data you have) and outputs (results you need to produce). This helps you organize the problem and determine what data to collect or calculate.

Example: In a problem where you need to calculate the area of a rectangle, the inputs would be the length and width, and the output would be the area.

Step 3: Develop the Logic

Logic development is crucial as it lays the groundwork for solving the problem systematically. Break down the solution into small, manageable steps. For example, if the problem is to find the factorial of a number, the logic would involve multiplying all integers from 1 up to the number. Identify any conditions, loops, or sequences needed to complete the task.

Example: To find the maximum number in an array, start by assuming the first element is the largest. Then, compare each element with the current maximum and update it if a larger value is found. Repeat this until the end of the array.

Step 4: Plan the Solution

This step involves representing your solution in a structured format, like an algorithm, flowchart, or pseudocode.

Algorithm

An algorithm is a step-by-step list of instructions for solving a problem. Algorithms are abstract and not tied to any programming language, so they are often written in plain English.

Example Algorithm (to find the maximum of two numbers):

  1. Take two numbers as input.
  2. Compare the two numbers.
  3. If the first number is greater, return it.
  4. Otherwise, return the second number.

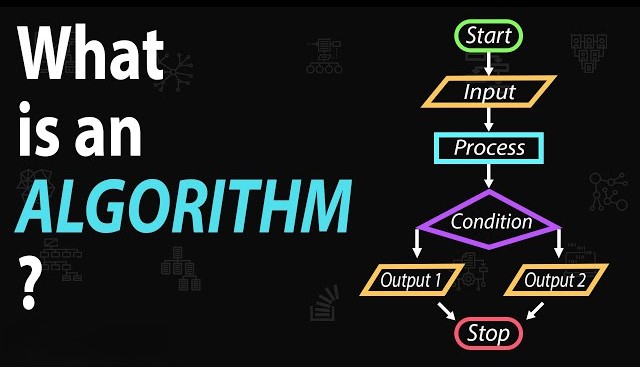

Flowchart

A flowchart is a visual representation of an algorithm. It uses shapes like rectangles (for processing steps), diamonds (for decision points), and ovals (for start/end points). Flowcharts help visualize the flow of control in the problem-solving process, making complex logic easier to understand.

Example Flowchart (for finding the maximum of two numbers):

  1. Start (oval).
  2. Input numbers (parallelogram).
  3. Decision box: Is the first number greater than the second?
  4. If yes, print the first number (output box).
  5. If no, print the second number.
  6. End (oval).

Pseudocode

Pseudocode is a high-level, human-readable description of an algorithm. It combines structured English with logical steps to describe the solution, often resembling programming languages without strict syntax.

Example Pseudocode (for finding the maximum of two numbers):

BEGIN
  INPUT num1, num2
  IF num1 > num2 THEN
      OUTPUT num1
  ELSE
      OUTPUT num2
  END IF
END

Step 5: Implement the Solution in C++

After developing the solution, you can write it in C++. Here’s a simple program structure:

#include <iostream>
using namespace std;

int main() {
    int num1, num2;
    cout << "Enter two numbers: ";
    cin >> num1 >> num2;

    if (num1 > num2) {
        cout << "The maximum number is " << num1;
    } else {
        cout << "The maximum number is " << num2;
    }

    return 0;
}

This code takes two numbers as input and outputs the larger of the two. After writing your code, compile and execute it to verify the solution.

Compile and Execute a C++ Program

To compile the program:

  1. Use a C++ compiler like g++. In the terminal, type g++ program.cpp -o program.
  2. Run the program by typing ./program.

Step 6: Analyze Character Set, Tokens, Data Types, and Errors in C++

Character Set

In C++, the character set includes letters (a-z, A-Z), digits (0-9), and special characters like +, -, *, /, ;, and #. They are the building blocks of the code.

Tokens

Tokens are the smallest units in C++ and include:

Data Types

Data types specify the type of data a variable can hold:

Errors in C++

Errors can be:

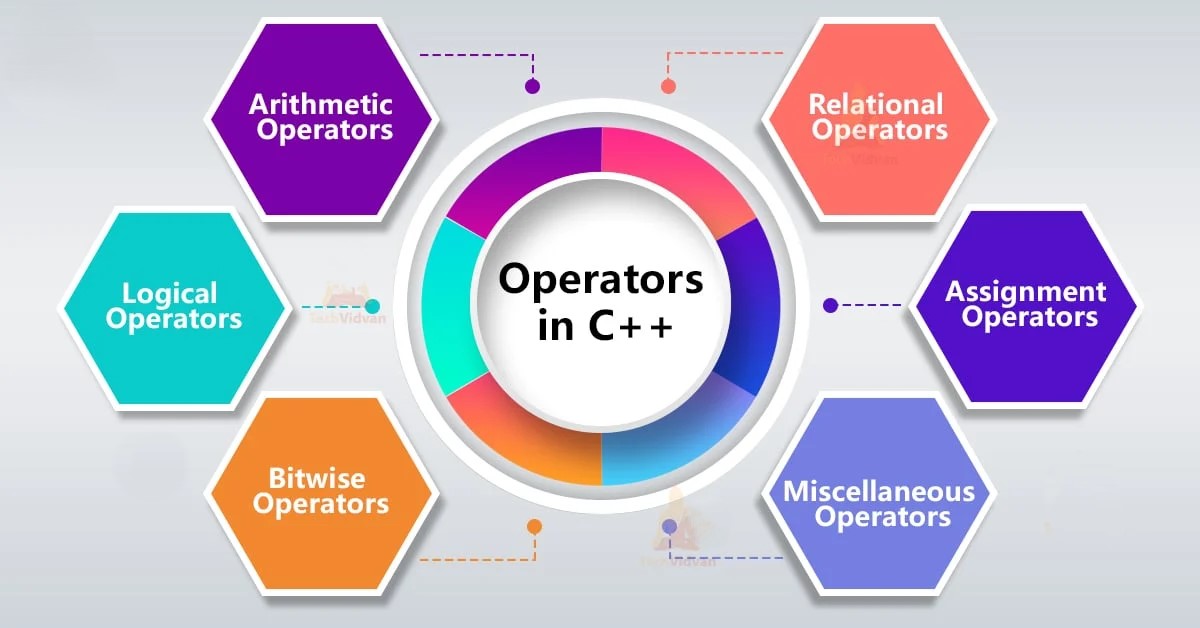

Operators

1. Assignment Operators

Assignment operators are used to assign values to variables in C++. The basic assignment operator is =, which takes the value on the right side and assigns it to the variable on the left. Compound assignment operators like +=, -=, *=, /=, and %= are shorthand for performing an operation and then assigning the result to the variable on the left.

For example, x += 5 is equivalent to x = x + 5. This operation first adds 5 to the value of x and then stores the result back in x. These compound operators are helpful for writing more concise code, especially in loops or repetitive calculations. Additionally, they improve readability, making it easier to see that a particular variable is being incremented or modified by a set amount.

2. Numeric Operators

Numeric (or arithmetic) operators perform fundamental arithmetic operations on numeric values:

These operators are the basis for most mathematical calculations in programs. When using these operators, keep in mind the types of the operands; for instance, dividing two integers results in an integer output, which could lead to data loss if not handled carefully.

Example: If a = 10 and b = 3, then a / b results in 3, as the decimal part is truncated. To get a precise result, at least one operand should be a floating-point number (e.g., a / 3.0 gives 3.33).

3. Prefix and Postfix Operators

Prefix (++x, --x) and postfix (x++, x--) operators are used for incrementing or decrementing values. The difference between them is when the increment or decrement happens relative to the value being used:

Example:

int x = 5;
int y = ++x; // y is 6, x is incremented first, then assigned to y
int z = x++; // z is 6, x is assigned to z first, then incremented

The choice between prefix and postfix affects the order of operations and can impact performance in more complex operations (e.g., loops).

4. Binary Number System

The binary number system represents values using only 0 and 1. In C++, binary values are often used for low-level operations, particularly in bitwise manipulation. Each bit in a binary number corresponds to a power of 2, starting from 2^0 at the rightmost bit. Binary is fundamental for understanding how computers store and process data at the hardware level.

Example: The binary equivalent of decimal 5 is 101.

5. Bitwise Operators

Bitwise operators perform operations directly on the binary representations of numbers. These operators are:

Bitwise operators are useful in low-level programming, where you might need to manipulate individual bits for tasks like optimizing memory usage or implementing flags.

Example: The expression 5 & 3 translates to 101 & 011 in binary, which results in 001 or decimal 1.

6. Logical Operators

Logical operators are used to evaluate boolean expressions and control program flow:

These operators are essential for conditional statements like if and while. They allow you to combine multiple conditions to control the logic flow of your program.

Example: If x = 5 and y = 10, the condition (x > 0 && y > 5) evaluates to true.

7. Relational Operators

Relational operators compare two values:

These operators return boolean values and are used in decision-making constructs.

8. Short-Circuit Operators

In C++, logical operators && and || are short-circuit operators. This means that they stop evaluating as soon as the final result is determined.

Example: For (x > 0 && y > 5), if x > 0 is false, the program will not evaluate y > 5 because the entire expression is already false. This behavior helps optimize performance, especially in complex conditions.

9. sizeof Operator

The sizeof operator returns the size (in bytes) of a variable or data type. This is especially useful in memory management and understanding the architecture of the data structures you’re working with.

Example:

cout << sizeof(int); // Prints the size of an integer on the current system

10. Operator Precedence and Associativity

Operator precedence determines the order in which operators are evaluated. For instance, multiplication has higher precedence than addition, so 3 + 4 * 2 is evaluated as 3 + (4 * 2). Associativity determines the order when two operators have the same precedence (e.g., + and - have left-to-right associativity).

Understanding precedence and associativity is critical to writing accurate expressions and avoiding bugs due to unexpected evaluations.

11. Type Conversion

Type conversion is the process of converting a variable from one data type to another. There are two types:

Example:

int a = 5;
float b = 3.2;
float result = a + b; // Implicitly converts 'a' to float for addition

Explicit type conversion is useful when you need to ensure that an expression is evaluated in a specific data type.

Control Structures

1. Decision-Making Statements

Decision-making statements allow the program to take different actions based on conditions. In C++, there are several ways to handle conditions:

if Statement

The if statement executes a block of code only if a specified condition is true. It’s one of the simplest decision-making statements.

Syntax:

if (condition) {
    // code to execute if condition is true
}

Example:

int age = 20;
if (age >= 18) {
    cout << "You are eligible to vote.";
}

In this example, the message will only display if age is greater than or equal to 18.

if-else Statement

The if-else statement provides an alternative path if the condition is false. This is useful for binary conditions (e.g., true/false, yes/no).

Syntax:

if (condition) {
    // code if condition is true
} else {
    // code if condition is false
}

Example:

int age = 16;
if (age >= 18) {
    cout << "You are eligible to vote.";
} else {
    cout << "You are not eligible to vote.";
}

In this case, if age is less than 18, the else block will execute.

Conditional Operator (?:)

The conditional operator, also known as the ternary operator, is a shorthand for an if-else statement. It evaluates a condition and returns one of two values depending on the outcome.

Syntax:

(condition) ? expression_if_true : expression_if_false;

Example:

int age = 20;
string result = (age >= 18) ? "Eligible" : "Not eligible";
cout << result;

This code uses the ternary operator to assign a value to result based on age.

switch Statement

The switch statement allows multi-way branching based on the value of a single variable or expression. It’s often used when you have multiple conditions based on a single variable.

Syntax:

switch (variable) {
    case value1:
        // code to execute if variable == value1
        break;
    case value2:
        // code to execute if variable == value2
        break;
    // more cases
    default:
        // code to execute if none of the cases match
}

Each case represents a potential value of the variable. The break statement exits the switch, ensuring that only the matching case runs. If no break is used, control will continue to the next case (known as “fall-through” behavior).

Example:

int day = 3;
switch (day) {
    case 1: cout << "Monday"; break;
    case 2: cout << "Tuesday"; break;
    case 3: cout << "Wednesday"; break;
    default: cout << "Invalid day";
}

This code checks day and outputs the corresponding day name.

Nested Decision Statements

Decision statements can be nested within each other to handle complex conditions. This is common when you need multiple conditions to decide on different actions.

Example:

int score = 85;
if (score > 90) {
    cout << "Grade A";
} else {
    if (score > 75) {
        cout << "Grade B";
    } else {
        cout << "Grade C";
    }
}

In this case, the code checks different grade ranges based on the score.

2. Looping Statements

Looping allows you to repeat code blocks until a certain condition is met. C++ provides three primary looping statements.

for Loop

The for loop is ideal when you know the number of iterations in advance. It consists of an initializer, a condition, and an increment/decrement expression.

Syntax:

for (initialization; condition; increment) {
    // code to execute
}

Example:

for (int i = 0; i < 5; i++) {
    cout << i << " ";
}

This code outputs 0 1 2 3 4.

while Loop

The while loop executes a block as long as the condition is true. It’s useful when the number of iterations is unknown.

Syntax:

while (condition) {
    // code to execute
}

Example:

int i = 0;
while (i < 5) {
    cout << i << " ";
    i++;
}

do-while Loop

The do-while loop is similar to the while loop, but it guarantees at least one execution of the loop body because the condition is checked after the loop.

Syntax:

do {
    // code to execute
} while (condition);

Example:

int i = 0;
do {
    cout << i << " ";
    i++;
} while (i < 5);

Nested Loops

Loops can be nested within other loops. Nested loops are often used for working with multidimensional data structures, like matrices.

Example:

for (int i = 1; i <= 3; i++) {
    for (int j = 1; j <= 2; j++) {
        cout << "i = " << i << ", j = " << j << endl;
    }
}

This code outputs all combinations of i and j values from 1 to 3 and 1 to 2.

3. Controlling Loop Execution

There are special keywords in C++ to control the flow of loops: break, continue, and goto.

break Statement

The break statement exits the loop immediately. It’s often used when a condition within the loop is met and you want to stop further iterations.

Example:

for (int i = 1; i <= 10; i++) {
    if (i == 5) {
        break;
    }
    cout << i << " ";
}

This loop will output 1 2 3 4 and then stop when i reaches 5.

continue Statement

The continue statement skips the current iteration and proceeds to the next iteration of the loop.

Example:

for (int i = 1; i <= 5; i++) {
    if (i == 3) {
        continue;
    }
    cout << i << " ";
}

The output is 1 2 4 5, as 3 is skipped.

goto Keyword and Labeled Statements

The goto statement transfers control to a labeled statement within the code. While it can be useful in certain cases, its use is generally discouraged in modern programming because it can make the code harder to read.

Example:

int i = 0;
start:
cout << i << " ";
i++;
if (i < 5) goto start;

4. Multiple-Selection Statements

The switch statement, combined with case and default, is a multiple-selection structure. It allows selection from several options based on a single variable or expression.

Syntax:

switch (expression) {
    case value1:
        // code for case 1
        break;
    case value2:
        // code for case 2
        break;
    // additional cases
    default:
        // code if no case matches
}

Each case must end with a break to prevent “fall-through.” The default case executes if no case matches.

Example:

char grade = 'B';
switch (grade) {
    case 'A':
        cout << "Excellent";
        break;
    case 'B':
        cout << "Good";
        break;
    case 'C':
        cout << "Average";
        break;
    default:
        cout << "Grade not recognized";
}

In this example, “Good” will be printed since grade is 'B'. —

Functions

1. Need for Functions

Functions allow programmers to break down large programs into smaller, manageable, and reusable pieces of code. By grouping related code together, functions promote clarity and simplify debugging and maintenance. Functions support the “divide and conquer” approach, where each function performs a specific task, making it easier to understand and modify a program.

For example, if you need to calculate the area of different shapes in a program, defining a function for each shape’s calculation would simplify the code. Not only do functions make code reusable, but they also allow for compartmentalization, where details of function internals are hidden from the rest of the program, promoting encapsulation.

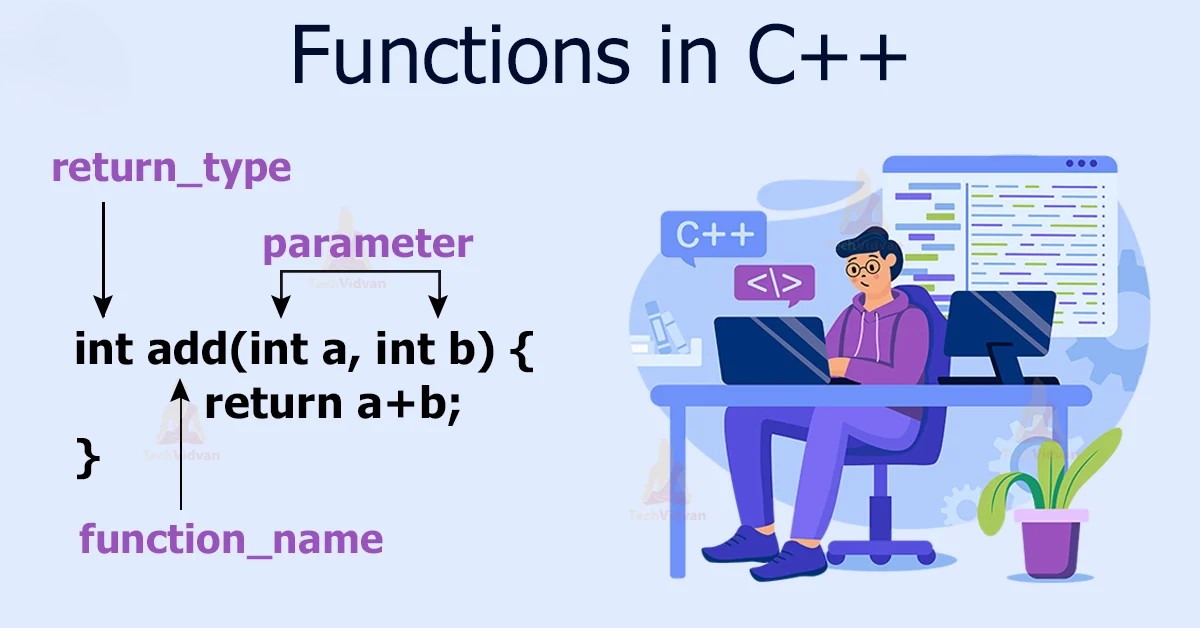

2. Components of Functions

A C++ function has several components:

Example:

int add(int a, int b) {
    return a + b;
}

Here, int is the return type, add is the function name, a and b are parameters, and return a + b; is the return statement.

3. Built-in and User-Defined Functions

Built-in Functions: These are pre-defined in C++ libraries. For example, sqrt() (square root) is part of the <cmath> library, and cout (output) is part of <iostream>. These functions are available for common operations, saving time and effort.

User-Defined Functions: Created by the programmer to handle specific tasks within the program. User-defined functions enable customized functionality, not covered by built-in functions.

Using both built-in and user-defined functions helps create efficient programs. While built-in functions provide ready-to-use functionalities, user-defined functions handle custom tasks unique to the program’s needs.

4. Parameter Passing in Functions: Call by Value and Call by Reference

Parameters can be passed to functions in two primary ways: by value or by reference.

Call by Value

In call by value, a copy of the actual parameter’s value is passed to the function. Changes made to the parameter within the function do not affect the original variable outside the function.

Example:

void modifyValue(int num) {
    num = 20;
}
int main() {
    int x = 10;
    modifyValue(x);
    cout << x; // Output will be 10, as x remains unchanged.
}

In this example, the function changes num but does not alter the original variable x.

Call by Reference

In call by reference, the function receives the address of the actual parameter, allowing it to modify the original variable directly.

Example:

void modifyValue(int &num) {
    num = 20;
}
int main() {
    int x = 10;
    modifyValue(x);
    cout << x; // Output will be 20, as x is modified directly.
}

By using &, modifyValue directly modifies x.

5. Scope Rules

In C++, a variable’s scope determines its accessibility within a program. Scope can be:

C++ follows scope rules to avoid conflicts and ensure variables are managed appropriately.

Example:

int globalVar = 10;
void example() {
    int localVar = 20;
    cout << globalVar; // Accessible
    cout << localVar; // Accessible
}
int main() {
    cout << globalVar; // Accessible
    // cout << localVar; // Error: localVar is not accessible here
}

6. Default Arguments

Default arguments allow functions to have optional parameters with pre-defined values. If an argument isn’t passed during the function call, the default value is used.

Example:

void greet(string name = "Guest") {
    cout << "Hello, " << name;
}
int main() {
    greet(); // Output: Hello, Guest
    greet("Alice"); // Output: Hello, Alice
}

Default arguments improve function flexibility and are often used for parameters with common values.

7. Function Overloading

Function overloading allows multiple functions with the same name to coexist, provided they have different parameters (types or number of parameters). This enables a single function name to handle various data types or operations, enhancing code readability.

Example:

int add(int a, int b) {
    return a + b;
}
double add(double a, double b) {
    return a + b;
}
int main() {
    cout << add(5, 3); // Calls int version
    cout << add(5.5, 3.5); // Calls double version
}

In this example, the add function works with both integers and doubles, demonstrating overloading.

8. Recursion

Recursion occurs when a function calls itself to solve a problem. Recursive functions must have:

Example (Factorial calculation):

int factorial(int n) {
    if (n <= 1) return 1; // Base case
    return n * factorial(n - 1); // Recursive case
}
int main() {
    cout << factorial(5); // Output: 120
}

Recursion is useful for problems that can be divided into similar subproblems, like calculating factorials or Fibonacci sequences. However, recursion should be used cautiously, as excessive recursive calls can lead to stack overflow errors.

9. Recursion vs. Iteration

Both recursion and iteration are ways to repeat a task. Recursion calls a function repeatedly, while iteration uses loops. Each has advantages and disadvantages:

For problems that can be represented as repetitive tasks (like counting or looping), iteration is typically preferable. For problems that naturally break down into subproblems, recursion is a better choice.

Example of Recursion and Iteration for Summing Numbers:

// Recursive sum
int recursiveSum(int n) {
    if (n == 0) return 0;
    return n + recursiveSum(n - 1);
}

// Iterative sum
int iterativeSum(int n) {
    int sum = 0;
    for (int i = 1; i <= n; i++) {
        sum += i;
    }
    return sum;
}

Both functions yield the same result but differ in approach. —

Arrays

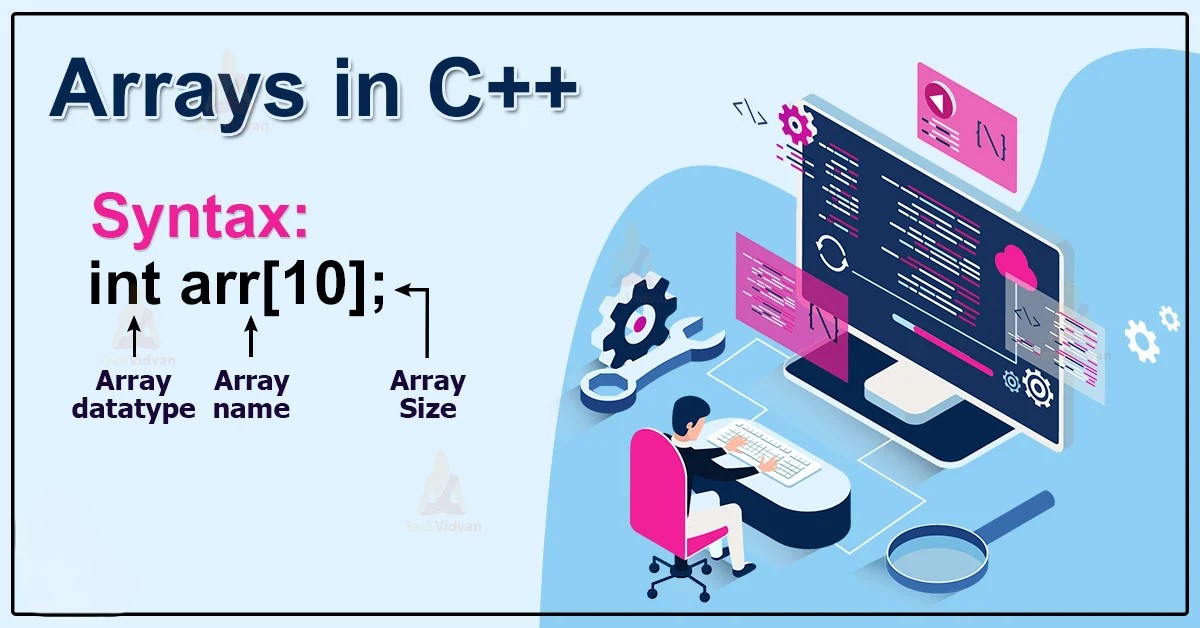

1. Single-Dimensional Arrays

A single-dimensional array is a collection of variables of the same data type stored in contiguous memory locations. Each element in an array is accessed by its index, making arrays useful for organizing large amounts of data under a single variable name. For instance, an array can be used to store the scores of students, where each score is an element of the array.

Syntax:

data_type array_name[size];

Example:

int scores[5] = {85, 90, 78, 92, 88};

Here, scores is an integer array that can hold five elements. The index of the first element is 0, so scores[0] is 85, scores[1] is 90, and so on.

Operations on Single-Dimensional Arrays:

Arrays are efficient but fixed in size once declared. For dynamic data storage, other data structures like vectors or linked lists are often more suitable.

2. Multi-Dimensional Arrays

Multi-dimensional arrays allow the storage of data in more than one dimension. The most common form is the two-dimensional array, which can represent matrices or grids. Each element is accessed by multiple indices.

Syntax:

data_type array_name[size1][size2];

Example:

int matrix[3][3] = {
    {1, 2, 3},
    {4, 5, 6},
    {7, 8, 9}
};

Here, matrix is a 3x3 array, where matrix[1][2] would access the element 6.

Operations on Multi-Dimensional Arrays:

Multi-dimensional arrays are ideal for representing complex data structures like matrices, tables, or pixel grids in images.

3. Array Operations

Arrays support several operations:

C++ also provides the std::array and std::vector containers in the Standard Library, which simplify array handling and provide additional functionalities.

4. Character Arrays and String Literals

Character arrays are used to store sequences of characters, i.e., strings. A string literal is a sequence of characters enclosed in double quotes, e.g., "Hello". In C++, strings can be represented by char arrays or std::string.

Character Array Syntax:

char name[6] = "Alice";

In this example, name is a character array that holds "Alice", with an additional null character ('\0') at the end, indicating the end of the string.

String Literals: String literals are stored as const char* in memory. For example:

const char* greeting = "Hello, World!";

Basic String Operations:

Character arrays are the traditional way of handling strings in C++, while std::string is generally easier and safer to use.

5. Using and Comparing Strings

Strings can be compared using functions or operators. For char arrays, strcmp (from <cstring>) is used, whereas std::string supports ==, <, >, and other comparison operators directly.

Example:

std::string str1 = "Apple";
std::string str2 = "Banana";
if (str1 < str2) {
    cout << "Apple comes before Banana";
}

Using std::string over char arrays offers benefits like dynamic resizing, easier manipulation, and built-in operators for comparison and concatenation.

6. Pointers

Pointers are variables that store the memory address of another variable. They are essential in C++ for dynamic memory management, referencing, and more.

Syntax:

data_type* pointer_name;

Example:

int x = 10;
int* ptr = &x;

Here, ptr is a pointer to x, and it holds the address of x. The * operator is used to declare a pointer, and the & operator is used to retrieve the address of a variable.

Declaring and Initializing Pointers

Pointers are declared with a * before the variable name, and they can be initialized to the address of another variable, nullptr, or dynamically allocated memory.

Example:

int* ptr = nullptr; // Pointer initialized to null
int x = 5;
ptr = &x; // Pointer now holds address of x

Dereferencing Pointers

The * operator, used on a pointer, accesses the value stored at the address the pointer holds. This is called dereferencing.

Example:

int x = 10;
int* ptr = &x;
cout << *ptr; // Outputs 10, the value of x

Pointer Arithmetic

Pointers can be incremented or decremented. Pointer arithmetic is commonly used in array manipulation.

Example:

int arr[] = {10, 20, 30};
int* ptr = arr;
cout << *ptr << endl; // Outputs 10
ptr++;
cout << *ptr << endl; // Outputs 20

7. Applications of Pointers

Pointers enable a variety of operations in C++:

Dynamic Memory Allocation Example:

int* p = new int; // Allocates memory for an integer
*p = 25;
cout << *p; // Outputs 25
delete p; // Frees the allocated memory

Using new, we can allocate memory at runtime, and delete releases it to avoid memory leaks.

Structures and Unions

1. Need for Structures

In C++, structures allow the grouping of different data types under a single name. A structure is a user-defined data type that can hold variables (called members or fields) of different data types. Structures help represent real-world entities that may have several attributes, which are often related but of different data types.

For example, when creating a system to store information about students, each student has multiple attributes such as name, age, and grade. Instead of creating separate variables for each attribute, a structure lets you group them under one name. This makes your code more organized, readable, and easier to maintain.

Example: A student structure can hold the student’s name, age, and grade:

struct Student {
     string name;
    int age;
    char grade;
};

Here, Student is a structure that groups three variables (name, age, and grade), and you can create a student by initializing an instance of this structure.

2. Syntax of Structures

To declare a structure in C++, the general syntax is:

struct structure_name {
    data_type member1;
    data_type member2;
    // ... other members
};

After defining a structure, you can create variables (instances) of that structure type. For example:

struct Student {
    string name;
    int age;
    char grade;
};

// Creating an instance of the Student structure
Student s1;

In this example, Student is a user-defined structure, and s1 is an instance of the structure.

3. Structure Operations

Passing and Returning Structures from Functions

Structures can be passed to functions as arguments or returned from functions. By default, when passing a structure to a function, C++ passes it by value, which means a copy of the structure is passed, and changes to it do not affect the original structure.

However, you can also pass a structure by reference to avoid copying large structures, ensuring that any modifications made in the function affect the original structure.

Passing by Value:

void displayStudent(Student s) {
    cout << "Name: " << s.name << endl;
    cout << "Age: " << s.age << endl;
    cout << "Grade: " << s.grade << endl;
}

Passing by Reference:

void updateStudent(Student &s) {
    s.age = 21;  // Modifies the original structure
}

You can return a structure from a function as well:

Student createStudent(string name, int age, char grade) {
    Student s;
    s.name = name;
    s.age = age;
    s.grade = grade;
    return s;
}

When returning structures from functions, C++ handles the return value by either copying or returning a reference, depending on how it’s implemented.

4. Nested Structures

A structure can contain another structure as one of its members. This is called a nested structure. Nested structures are useful when you need to organize data hierarchically.

Example:

struct Address {
    string street;
    string city;
    string state;
    int zip;
};

struct Person {
    string name;
    int age;
    Address address;  // Nested structure
};

In the above example, Person contains an Address structure as one of its members. You can access the nested structure’s members using the dot operator.

Accessing Nested Structure Members:

Person p;
p.name = "John";
p.address.street = "123 Main St";

Here, the address member of the Person structure is an instance of the Address structure, and its members can be accessed using p.address.street, etc.

–

5. Array of Structures

An array of structures allows the storage of multiple instances of the same structure. This is useful when you want to store similar data for a collection of objects.

Example:

struct Student {
    string name;
    int age;
    char grade;
};

Student students[3]; // Array of 3 Student structures

You can access and modify the members of each structure in the array using the array index and dot operator:

students[0].name = "Alice";
students[0].age = 20;
students[0].grade = 'A';

students[1].name = "Bob";
students[1].age = 22;
students[1].grade = 'B';

This allows you to store multiple students’ data in an organized way.

6. Typedef

The typedef keyword in C++ is used to create a synonym for an existing data type. It allows for easier and more readable code by giving user-defined data types (including structures) meaningful names.

Syntax:

typedef existing_type new_name;

Example:

typedef struct {
    string name;
    int age;
} Person;

Person p1; // Now we can use Person instead of struct Person

In the example, typedef is used to define a new type name (Person) for the structure, making the code more concise and easier to read. This can be especially helpful when dealing with complex types.

7. Union

A union is a special data type that allows storing different data types in the same memory location. Unlike a structure, where each member has its own memory location, all members of a union share the same memory space. This allows the memory used by a union to be more efficient but means that only one of its members can hold a value at any given time.

Syntax:

union UnionName {
    data_type member1;
    data_type member2;
};

Example:

union Data {
    int i;
    float f;
    char str[20];
};

Data data1;
data1.i = 10;    // Only this member can hold a value at a time
data1.f = 3.14;  // This will overwrite data1.i

In this example, the union Data can hold an int, float, or char[] at different times, but not all at once.

8. Structure vs. Union

The key difference between a structure and a union lies in how they store data:

Feature Structure Union
Memory Usage Each member gets its own memory. All members share the same memory.
Simultaneous Values Can store values for all members. Can store a value for only one member at a time.
Use Case Suitable when you need to store multiple values at once. Suitable when you need to store different types of data but only one at a time.

Example:

struct Employee {
    string name;
    int age;
    double salary;
};

union Data {
    int i;
    float f;
    char str[20];
};

Conclusion

Structures and unions allow for the organization of different data types in a single unit. Structures are useful for grouping related data, whereas unions allow for memory-efficient storage when only one of the several members needs to be stored at a time. The typedef keyword improves readability by creating custom names for data types, and arrays of structures allow the storage of multiple instances of the same structure. Understanding when to use structures and unions—and how they differ—is key to writing efficient and organized C++ programs.
